V-Beam Metal Panel

Get a Quote
diagram-vbeam

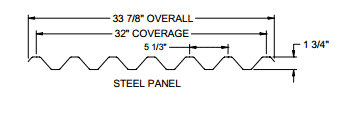

V beam 32 inch coverage for steel

V- Beam Metal Description:

The V-Beam panel can have a coverage of 32″ for steel and 42″ for aluminum. Rib height shall be 1¾”. Panels are directly fastened to the substrate. The panel has an overlapping sidelap feature.

V Beam Panel Specs:

  • Maximum V beam panel to Minimum V beam panel length : 45 feet to 6 feet
  • Field Curving Options available
  • Used for vertical and Horizontal applications
Galvanized Steel
Gauge26 ga.24 ga.22 ga.20 ga.18 ga.
Weight/Square inch – Plain115.0 lb.146.8 lb.178.5 lb.210.2 lb.273.7 lb.
Weight/Square Painted116.7 lb.148.5 lb.180.2 lb.211.9 lb.274.4 lb.

Specifications

Grade 50 (50 ksi yield strength) Grade 40 (40 ksi yield strength) for 18 ga. Grade 80 (80 ksi yield strength) for 26 ga. structural steel with G90 coating, both conforming to ASTM A 653
Aluminum-Zinc Alloy Coated Steel
Gauge26 ga.24 ga.22 ga.20 ga.18 ga.
Weight/Square inch – Plain110.7 lb.142.0 lb.173.8 lb.205.7 lb.269.4 lb.
Weight/Square Painted112.3 lb.143.7 lb.175.5 lb.207.4 lb.271.1 lb.

Specifications

Grade 50 (50 ksi yield strength) Grade 40 (40 ksi yield strength) for 18 ga. Grade 80 (80 ksi yield strength) for 26 ga. structural steel with AZ50 coating, both conforming to ASTM A 792
Aluminum
Size0.032″0.040″0.050″
Weight/Square inch – Plain57.4 lb.71.7 lb.89.6 lb.
Weight/Square Painted58.6 lb.73.0 lb.90.9 lb.

Specifications

3004-H36 or equivalent (28 ksi yield strength) aluminum alloy conforming to ASTM B 209
